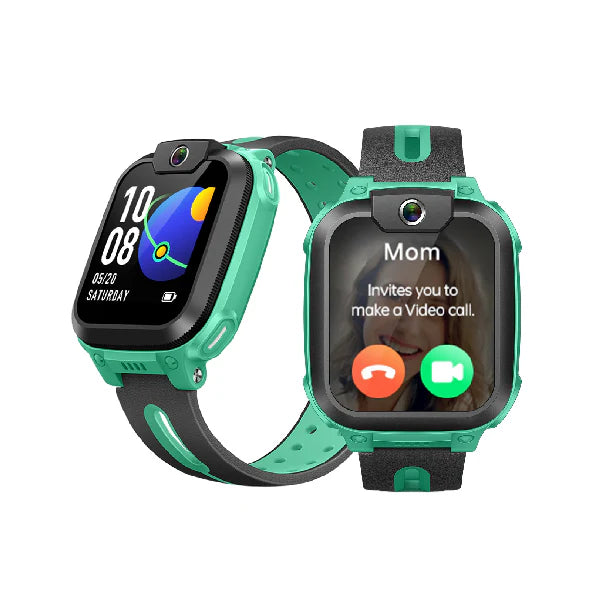

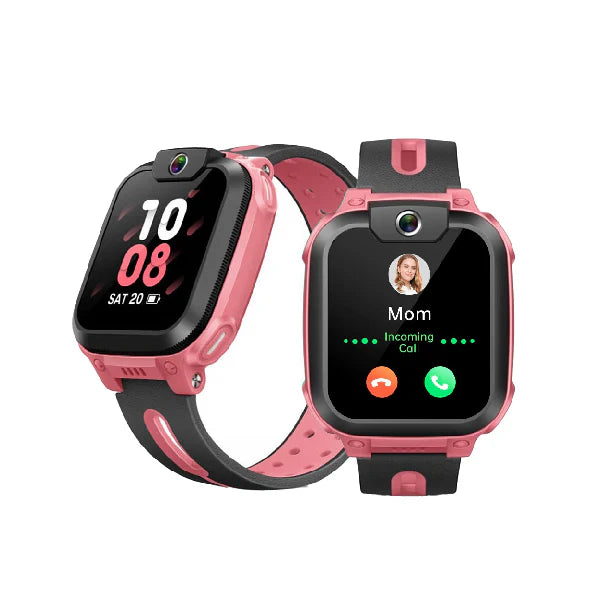

imoo Z1
The imoo Z1 Watchphone is designed to provide children with a stylish, feature-rich wearable that offers both safety and fun. It’s the ideal first phone for kids, combining essential communication features with robust safety measures, all packed into a sleek and comfortable design that children will love to wear.
Water Resistant: IPX8
Battery: 740mAh
Display Material: IPS LCD
CPU: Spreadtrum UWS6131E
Standby: 168 hours
Screen Resolution: 240*210

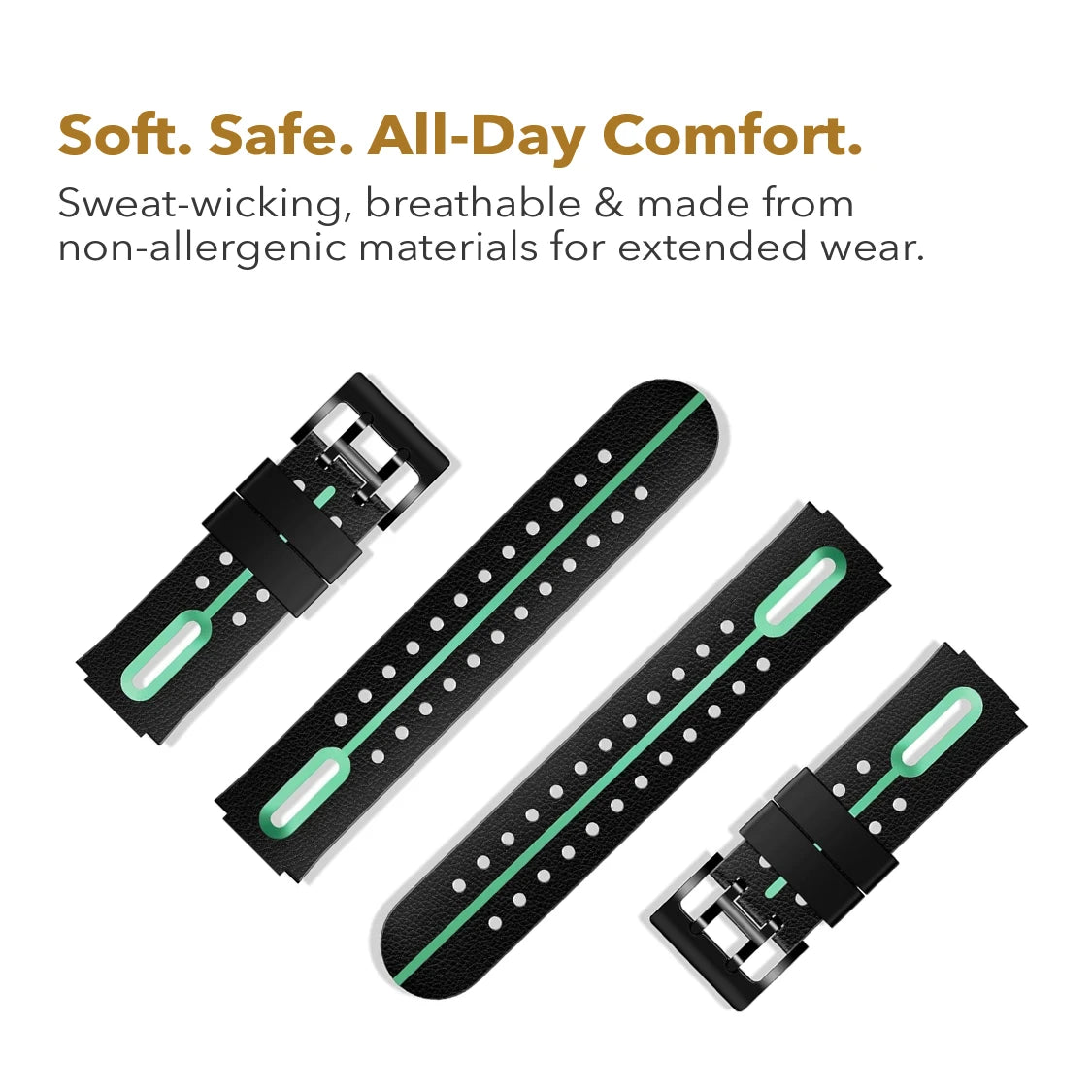

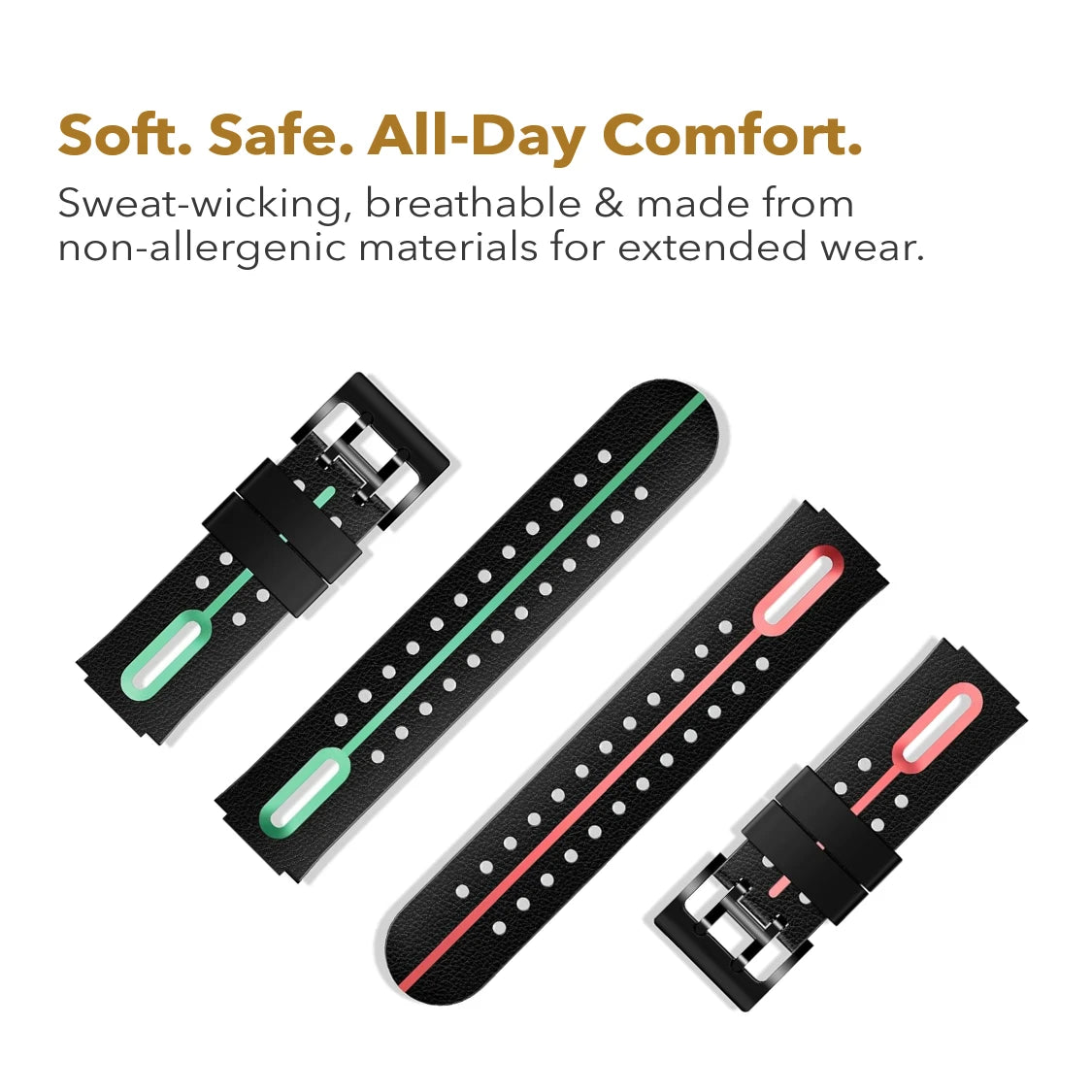

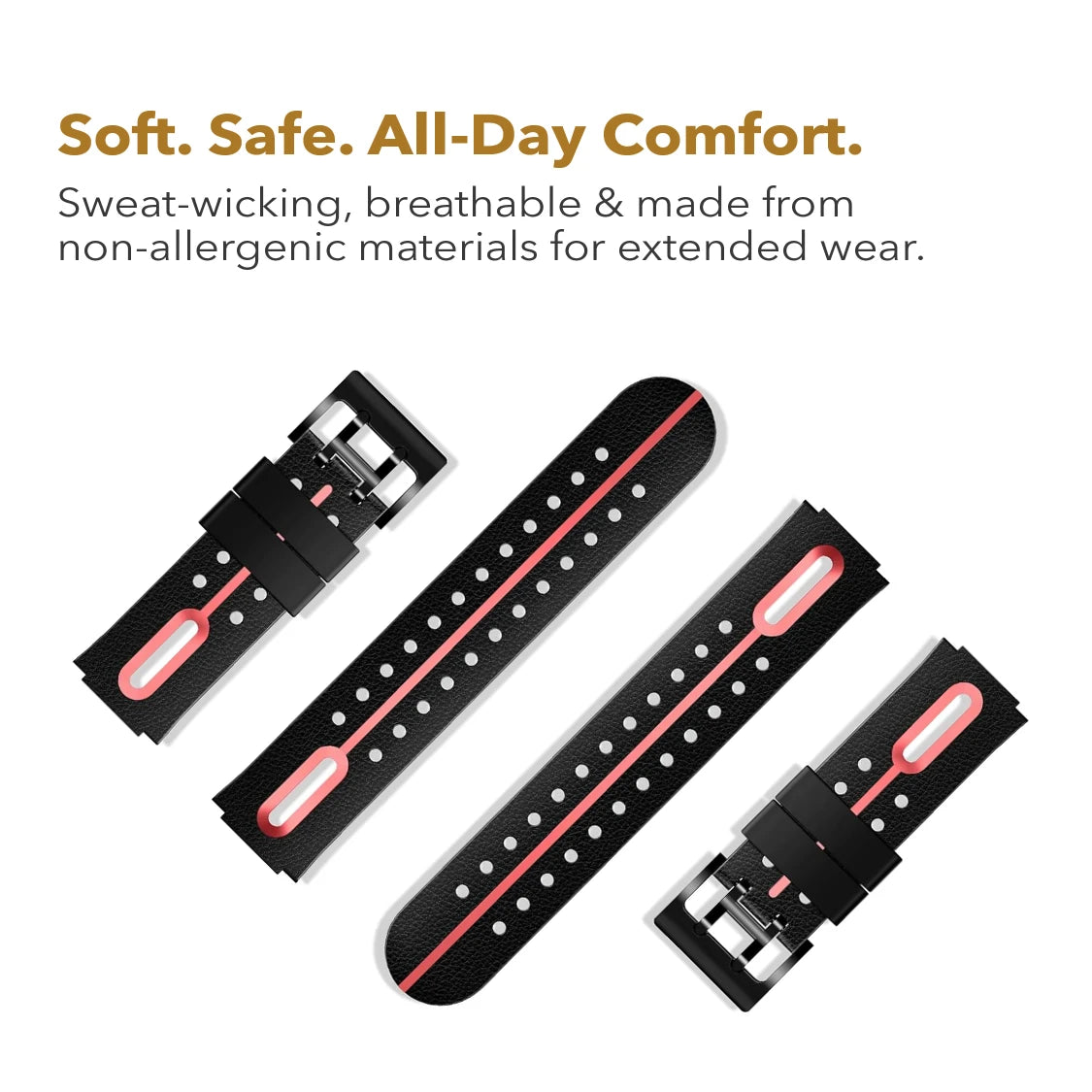

Watchband: TPU
VOLTE: √ (Switchable)
Camera(megapixels): 2M
Bluetooth: 4.2
WiFi: TX/RX: 2412-2472MHz
GPS: Yes
GLONASS: Yes
BDS: Yes
Wi-Fi: Yes
LBS: Yes
GSM(2G): B8(900), B3(1800)
WCDMA(3G): B1(2100), B5(850), B8(900)
FDD-LTE(4G): B1(2100), B3(1800+), B5(850), B8(900)
TD-LTE(4G): B40(TD 2300), B41(100M)
Watch Size: 51.1*41.7*14.5 (mm)
Weight: 51g
1) Watch Phone Z1
2) Card Picker
3) Charging Cradle
4) Operating Instruction
Winning Trust
Product Highlights
HD Video & Voice Call
Busy with work or family far away? Stay connected with imoo Z1
HD Voice Calling
Limit contacts to pre-approved numbers with the "Reject Unknown Calls" feature.
2 Way HD Video Calling
Enjoy face-to-face conversations anytime.
Chat & Family Chat
Send texts, voice messages, emojis, photos & short videos to stay updated on your child's daily activities.
Accurate Locating
GPS, GLONASS, WIFI, LBS
easily locate your child using the imoo App’s navigation feature if they go out of sight.
Monitor their movement status in real-time, supported by Google Maps, directly through the app.
IPX8 Water Resistance
Pleasant Swimming Experience
With specially selected water-resistant materials, imoo Watch Phone Z1 enables kids to enjoy fun, playing with water.
Make Your Kids Move
Step Ranking & Step Counting
More than a fitness tracker, connect with friends to compare daily step rankings to motivate your child to exercises more.
'Class Mode' for Undisturbed Learning
Set 'Class Mode' via the imoo App to limit the Z1 to a regular watch during classes, allowing only urgent calls to parents. Keep your child free from distractions focused on learning.
No Stranger Calls
Safety is a top priority with the imoo Z1. The "No Stranger Calls" feature ensures that only pre-approved contacts can reach your child, protecting them from unwanted or unknown callers.
Make Friends
Bump wrists to instantly connect and make new friends with imoo.
SOS
Write a "C" on the imoo Z1 to send an instant alert in an emergency.
No Social Media | No Open Internet
Ensuring a safer, distraction-free environment for your child.
Geo Fencing
Set safe zones for your child and receive instant alerts when they enter or leave designated areas.
Ultra Long Battery Life
Stay Connected Longer
With state-of-the-art Silicon Anode battery technology, Z1 provides longer battery life than any other device in its size and weight category.
4G Connectivity
Enjoy fast, reliable communication and real-time location tracking with seamless 4G network support on the imoo Z1
How Does It Work?
Step 1

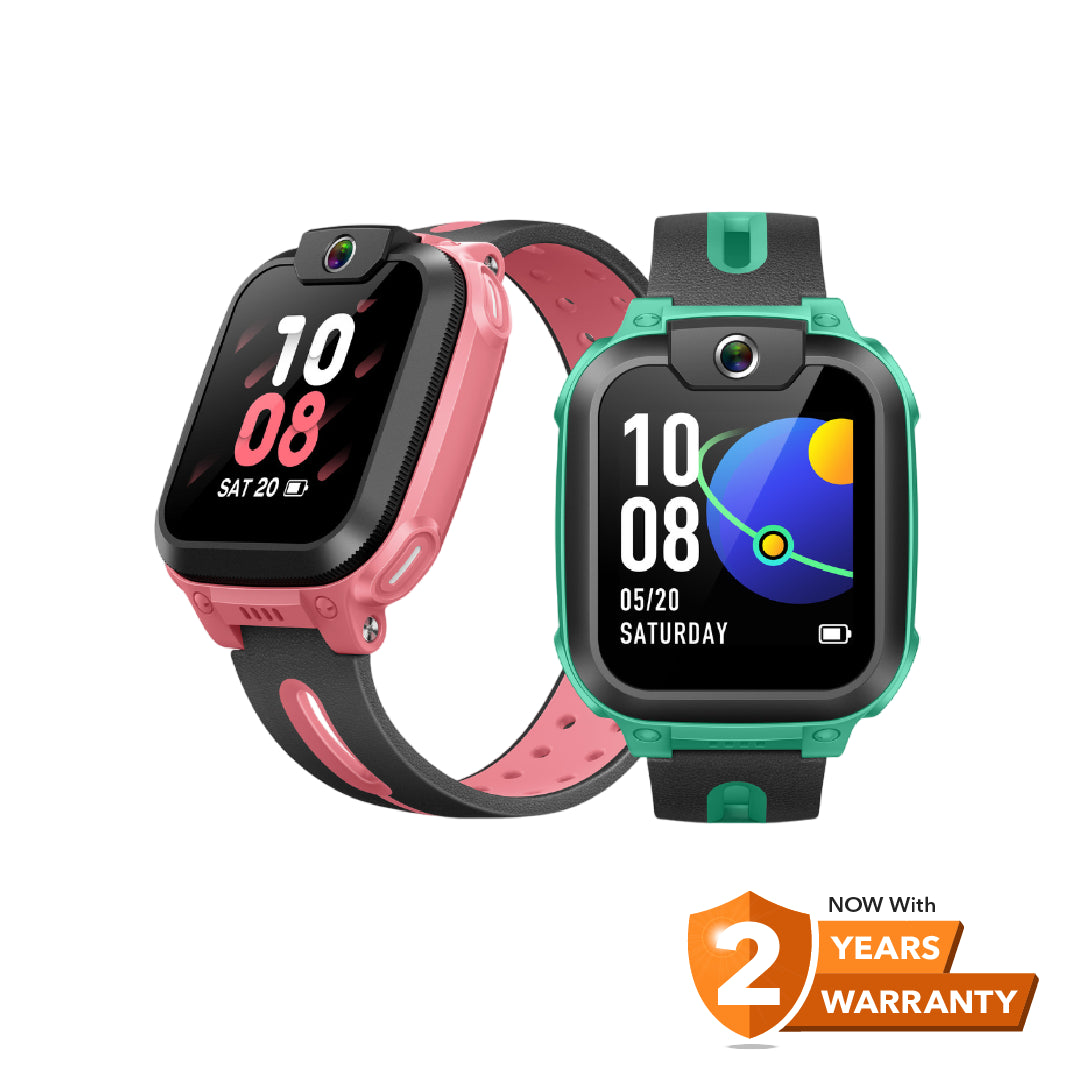

Choose imoo Watch Phone Z1 from 2 colours
Step 2
Buy a Nano SIM card
Step 3
Download the Free imoo App on Google Play or App store.
Step 4
Bind the imoo APP with imoo Watch Phone Z1, and let your kid’s adventure begin
Frequently Asked Questions
Incoming call not showing in the watch screen.
- During call you should check the watch is connected to the app.
- Restore the watch Long press the power button twice then click on restore option.
How do I make a call with my imoo Watch Phone Z1?
- Through watch, In the main interface slide right to call enter the call interface
- Through Mobile, you can call by opening the imoo app.
imoo Watch Phone has no ring tone or message tone.
- Check the volume of the watch- Go to watch setting > Ringtone & Volume > Volume control
- Check the Scheduled Power ON/Off, if the watch is set to turn off there will be no incoming calls or message. Go to imoo watch phone app > More > Scheduled Power On/Off
- Clean the speaker of the watch with cotton.
imoo Watch Phone switches itself off during calls.
- When the battery is low or there is only one bar of battery power, the watch will shut down automatically when you make a call.
- At low temperatures, the watch will automatically shut down when you make a call. It is recommended to wear the watch under your sleeve.
There is a noise/echo during calls on imoo Watch Phone.
- Use another phone to call the watch and check if there is still an echo.
- Take your watch out into the open air and make a call away from the phone to see if there is still an echo.
- Restore the watch and reinstall the app.
How do I take a picture with my imoo Watch Phone Z1?
Slide left in the watch, then slide down, then there is an icon of Take photo.
What is Class Mode of imoo Watch Phone?
In Class Mode, the watch can only tell the time and will reject all calls and messages for a certain period of time.
How do I set up Class Mode on my imoo Watch Phone?
Open imoo watch phone app > More > Class Mode> set the class mode.
Can I still make a call when my imoo Watch Phone Is in Class Mode?
If “Contact parents under class mode” is allowed, the watch in Class Mode can call the administrator and parents as well as tell the time.
I am unable to connect my watch to my phone after disconnection.
- To check watch is connected to another phone [If watch is connected to another phone, then you have to unbind the watch otherwise, you have to send binding request to admin phone].
- Check the watch and app are updated.
- Restore the watch [Long press the power button twice].
- If still issues persist, try to connect with different phone.
What to do if I am unable to connect my watch with the phone?
- Make sure you are using Android 4.4/ IOS 9.0 or above OS version in your smartphone.
- It is necessary to accept and agree to all the terms and permission.
- Make sure you have download imoo app in your phone.
- If you still continue to have binding issues, please restart your phone and try again.
What to do if I am unable to receive notification in imoo watch phone?
Ensure that you have to enable notification in imoo app.
- Open imoo watch phone app > More > App settings > Notification then enabled the Notification.
- Go to Phone Setting > Notification > Manage Notification > imoo watch phone app>Enable.
- If you still not receive notification, please lock your app in the background.
How do I restore the system of my imoo Watch Phone Z1?
The specific Restore operation is as follows:
- Long press power “On/Off” button twice on the back of the watch.
- “Restore” will appear. Click “Restore” and the watch will automatically restart. After restoring, the watch can be used normally.
imoo Watch Phone is stuck, crashed or some functions are not available.
- Press “On/Off” for 10 seconds and check whether the watch has returned to normal.
- If the situation continues, long press power “On/Off” button twice on the back of the watch. “Restore” will appear. Click “Restore” and the watch will automatically restart. After restoring, the watch can be used normally.
imoo Watch Phone gets hot during use.
- Don’t worry. The Z1 watch adopts the 4G network. Just like a smartphone, it will get slightly hot after a long time in use, but this is normal and will not affect the performance or service life of the device.
- If the watch is seriously hot, please turn it off for a while and continue to use it after it cools down.
How do I fix abnormal sound issues of my imoo Watch Phone?
- Check whether the speaker hole is blocked by foreign matter. Try again after cleaning.
- The speaker may be waterlogged. Try again after letting it dry.
How long does imoo Watch Phone normally take to locate?
It normally takes 4-7 seconds to locate. If it takes too long, you can check whether the watch is using the 4G network; if not, please confirm whether your SIM card enables 4G data or whether the current environment is severely blocking the data network.
How do I set up Wi-Fi of my imoo Watch Phone?
After binding the watch to your mobile phone:
- Enter imoo watch phone app > Watch network > Add network.
- After setting up, the watch will automatically connect to Wi-Fi. The watch only supports 2.4G Wi-Fi.
- You can also connect Wi-Fi in watch (Watch Setting > WLAN > Select Network.
- After setting up, watch will connect to the Wi-Fi.
It says “Web Authentication is not Supported” when I connect imoo Watch Phone to Wi-Fi.
The watch does not support Wi-Fi connections to authenticated networks.
imoo Watch Phone Wi-Fi is sometime automatically disconnected.
- Check in other devices WIFI working or not.
- Restart the watch.
- Go to watch setting > WLAN > Enable WLAN > Select Wi-Fi network.
It says “Wrong Password for Wi-Fi Connection” during imoo Watch Phone Wi-Fi connection.
It says “Wrong Password for WIFI Connection” during imoo Watch:
- First, check whether the WIFI password is wrong, then re-enter the password.
- Turn on a hotspot on your phone and check whether the watch can be connected to the hotspot.
- If it still doesn’t work, set a simple password such as 12345678 and try again.
- Long press “On/Off” for ten seconds to restore the watch, then try again. Home WIFI connection.
imoo Watch Phone network signal is abnormal.
- Re-insert the SIM card and try again.
- Try again in an area with little signal interference.
- Insert a new SIM card. If the network does not return to normal, please contact the SIM card operator for solutions.
How do I check the status of the network on my imoo Watch Phone?
In the main interface, slide down to enter the notification interface; check the notification bar icon at the top to see the status of the network.
Do I need to install a SIM card to use my imoo Watch Phone?
Yes, you will need to install a standard NANO SIM card into the watch phone.
Which phone plan should I choose for my imoo Watch Phone Z1?
You need to enable caller ID display and GPRS data Internet access. Your phone plan should have at least 500M of data per month. The watch supports 4G exclusive data and 2/3/4G general data. Please confirm with the customer service staff of the operator when applying for a SIM card plan.
Which operator should I choose for my imoo Watch Phone Z1?
Choose Compatible Operators for Your imoo Watch Phone.
imoo Watch Phone Z1 currently supports most mainstream operators in India.
How do I update the firmware of with my imoo Watch Phone?
The watch will automatically download the installation package when it is charged and connected to WIFI. It can be downloaded in about 20 minutes under normal network conditions. After downloading, keep the watch on. When the battery power is above 50%, the watch will be automatically upgraded. No charger is required during the upgrade, which will be completed in 3-4 minutes.
Note: The time required for downloading and upgrading is determined by the network environment to which the watch is connected.
imoo Watch Phone has detected a new version but it can’t be automatically upgraded while charging.
If the watch has detected a new version but it can’t be upgraded, please make sure that the watch has enough available space, then restart the watch and:
- Connect the watch to Wi-Fi.
- Enter imoo watch phone app > More > Watch’s Firmware Update > Enable Auto update > Enable Download Software Updates with Data.
- Plug the charging cable of the watch, then check whether the charging interface shows the progress of downloading the upgrade package. After downloading the upgrade package, the watch will automatically enter the upgrade interface to upgrade to the new version when the battery power is more than 50%.
imoo Watch Phone can’t detect a new version.
- Turn off and restart the watch, insert the SIM card and connect the watch to the Internet, then charge it and try again.
- Enter imoo app > More > Watch’s Firmware Update > Enable Auto update > Enable Download Software Updates with Data.
- If the situation continues, long press power “On/Off” button twice on the back of the watch. “Restore” will appear. Click “Restore” and the watch will automatically restart. After restoring, the watch can be used normally.
How do I enter the watch phone number in imoo app?
Open imoo app > More > Enter kids’ profile > Enter watch number and Save
How do I restore my watch?Long press power “On/Off” button on the bottom of the watch and release it after the on/off page appear. On the on/off page, press “On/Off” for 3 seconds and “Restore” will appear. Click “Restore” and the watch will automatically repair the system and restart. After restarting the watch can be used normally.
How can I do SOS call?
- Go to imoo watch phone app > More > Watch setting > Emergency SOS > Enable SOS
- Make ‘C” alphabet on watch screen after that you can call the admin directly.
How do I set up my imoo watch phone?
You can follow the steps to setup your watch phone:
- Press “On/Off” on the back side of the watch for 2 seconds to turn it on.
- Download and install the imoo app on your phone.
- Open the imoo app and sing up or login.
- Pair with QR code (Bind Code) scan -You can use the bind code scan method to pair the watch.
- Go watch Setting>More>Enable international roaming.
How do I exit APPs on imoo Watch Phone?
After you enter an APP, slide right to exit the APP.
How do I enter my imoo Watch Phone status bar?
In the main interface, slide down to show the watch status bar and important pushes and reminders which are in chronological order.
How do I change the dial of imoo Watch Phone Z1?
Long press on the main interface to enter the dial change interface, slide left and right to see styles, and select one to change the dial.
How do I add friends with my imoo Watch Phone?
Slide left on watch screen > Add Friend > Click “Start Making Friends”, then find a friend and touch your watch with his/hers to add him/her as a friend.
Note: The Add Friends function is only available when you and your friend both use the imoo Watch Phone.
How do I send an image to a friend?
Slide right on watch screen > Open Chat > Select Friend > Slide right > Click on Album or Take a photo icon and Send
How do I send a message to a friend?
Slide right on watch screen > Open Chat > Select Friend > Press Hold and Talk
How do I add chat friends on imoo Watch Phone APP?
Only users who download and install the APP on their phones and bind the watch to their phones will automatically enter the family group chat module. A watch can be bound to up to 20 phones.
I can’t find the chat history on imoo Watch Phone.
The watch can store the latest 500 text (voice) messages for Chat.
